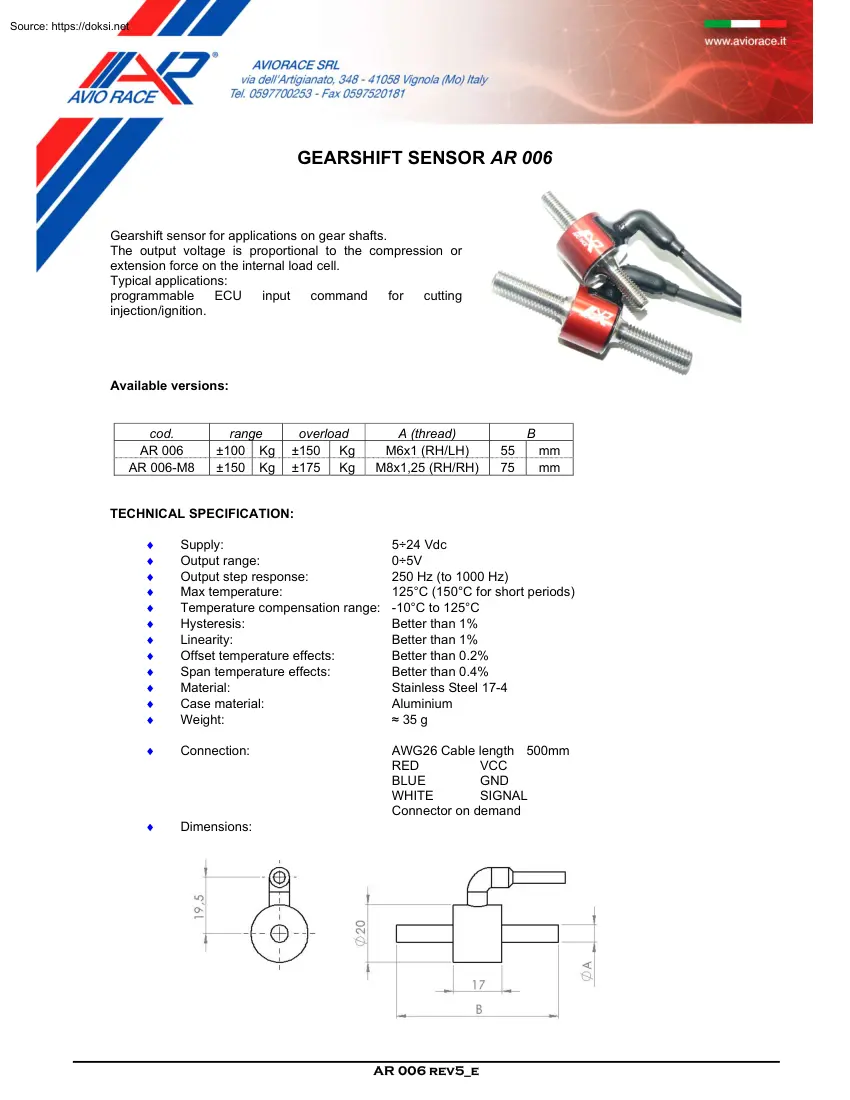

GEARSHIFT SENSOR AR 006 Gearshift sensor for applications on gear shafts. The output voltage is proportional to the compression or extension force on the internal load cell. Typical applications: programmable ECU input command for cutting injection/ignition. Available versions: cod. AR 006 AR 006-M8 range ±100 Kg ±150 Kg overload ±150 Kg ±175 Kg A (thread) M6x1 (RH/LH) M8x1,25 (RH/RH) B 55 75 mm mm TECHNICAL SPECIFICATION:             Supply: Output range: Output step response: Max temperature: Temperature compensation range: Hysteresis: Linearity: Offset temperature effects: Span temperature effects: Material: Case material: Weight: 5÷24 Vdc 0÷5V 250 Hz (to 1000 Hz) 125°C (150°C for short periods) -10°C to 125°C Better than 1% Better than 1% Better than 0.2% Better than 0.4% Stainless Steel 17-4 Aluminium ≈ 35 g  Connection: AWG26 Cable length 500mm RED VCC BLUE GND WHITE SIGNAL Connector on demand  Dimensions: AR

006 rev5 e
